Camera Link Cameras: Connectivity, Performance, Integration & Selection

High-Speed Camera Link Cameras

Camera Link cameras are designed for deterministic, low-latency image acquisition using a dedicated point-to-point camera interface. The standard combines high-speed image transfer, camera control, timing, serial communication, and real-time signaling between the camera and frame grabber. This makes Camera Link suitable for industrial inspection, scientific imaging, medical systems, defense, line-scan imaging, high-speed recording, and other demanding imaging applications.

Camera Link supports several acquisition configurations, including Base, Medium, Full, and 80-bit Deca, with maximum standardized bandwidth reaching 850 MB/s, or approximately 6.8 Gb/s. Dual Base configurations can also support two Base cameras from compatible acquisition hardware.

Selecting the correct Camera Link camera therefore involves more than resolution and frame rate. Engineers must also consider Camera Link configuration, pixel clock, tap format, pixel depth, cable requirements, PoCL support, triggering, synchronization, frame grabber compatibility, and downstream processing capacity.

Understanding CameraLink Cameras

Camera Link is a dedicated digital imaging interface that standardizes communication between cameras and frame grabbers. Unlike network-based camera interfaces, it uses a direct hardware connection designed specifically for deterministic image acquisition.

The standard defines image-data transfer together with camera timing, control signals, and serial communication. Maintained by A3, Camera Link remains a well-established imaging standard with interoperable cameras, frame grabbers, and cables from multiple manufacturers.

Supported camera configurations include:

• Base
• Medium
• Full
• 80-bit Deca
• Dual Base, when supported by the acquisition architecture

Power over Camera Link, or PoCL, also allows compatible cameras to receive power through the Camera Link connection. Mini Camera Link connectors reduce connector size for compact systems.

Typical considerations include:

• Camera resolution and frame rate
• Base, Medium, Full, or Deca configuration
• Pixel clock
• Number of taps
• Pixel depth and image format
• Monochrome or color operation
• Global or rolling shutter
• External triggering and synchronization
• PoCL requirements
• Cable type and length
• Area-scan or line-scan architecture
• Frame grabber and host-system bandwidth

Current Camera Link camera portfolios include both area-scan and line-scan systems. CL cameras remain relevant where deterministic acquisition, mature hardware integration, and predictable image timing are important.

Camera Link Camera Selection Criteria

Select the Camera Link camera according to the complete imaging workload, not the interface configuration alone.

Resolution and Sensor Format

Higher-resolution sensors capture more spatial detail but generate larger image payloads. The lens and optical format must also match the sensor size and required field of view.

Global vs. Rolling Shutter

Global-shutter cameras expose the complete image simultaneously and are generally preferred for moving objects and precision measurement. Rolling-shutter sensors may offer advantages in resolution, sensitivity, cost, or availability, but motion artifacts must be considered.

Frame Rate

Higher frame rates directly increase the required acquisition bandwidth. As resolution, frame rate, or pixel depth increases, a camera may require Medium, Full, or Deca operation instead of Base Camera Link.

Pixel Depth and Image Format

8-, 10-, 12-, 14-, 16-bit, and other pixel formats affect image quality, dynamic range, and data rate. Camera and frame grabber tap formats must also be compatible with the transmitted image structure.

Camera Link Configuration

Base, Medium, Full, and 80-bit Deca provide progressively greater data width and bandwidth. The selected frame grabber must support the exact camera configuration and required pixel clock.

Tap Configuration

Camera Link cameras may transmit multiple pixels simultaneously using different tap arrangements. The frame grabber must correctly interpret the camera’s tap geometry and pixel packing.

Triggering and Synchronization

Applications involving line-scan acquisition, moving objects, metrology, multi-camera imaging, or high-speed inspection often require precise trigger timing and deterministic acquisition.

Acquisition and Processing Architecture

The camera is only one part of the data path. The frame grabber, FPGA, PCIe interface, host memory, storage subsystem, GPU, and processing pipeline must all sustain the required image-data rate.

High-Resolution and High-Speed Imaging

High-resolution and high-speed Camera Link cameras can generate substantial continuous image bandwidth, particularly when operating in Full or 80-bit Deca configurations.

The underlying relationship remains:

Resolution × frame rate × pixel depth × number of cameras = required image-data bandwidth

Higher resolution increases the amount of data in every frame. Frame rate and pixel depth increase the required bandwidth further, while multi-camera systems multiply the total acquisition requirement.

Camera Link is particularly useful where a predictable hardware data path and deterministic transfer are more important than network flexibility.

The complete acquisition architecture must therefore be dimensioned for the sustained image stream rather than only the nominal camera specification.

Camera Link Cameras and Base, Medium, Full & Deca Configurations

Camera Link Cameras use several standardized configurations that determine the number of data bits transmitted and the maximum available interface bandwidth.

These maximum values assume operation at the upper standardized Camera Link clock rate.

Base Camera Link Cameras

Base Camera Link uses a 24-bit data path and is appropriate for moderate-resolution and moderate-frame-rate applications. It also uses fewer physical resources than the higher configurations.

Medium Camera Link Cameras

Medium expands the data path to 48 bits, providing additional bandwidth for cameras that exceed Base performance.

Full Camera Link Cameras

Full Camera Link increases the data width to 64 bits and supports higher image throughput for demanding area-scan and line-scan systems.

80-bit Deca Camera Link Cameras

80-bit Deca extends Camera Link to its maximum standardized parallel data width, supporting up to 850 MB/s. It is suited to high-speed cameras requiring the highest throughput available within conventional Camera Link.

Dual Base Configurations

Compatible frame grabbers may also support two independent Base Camera Link cameras simultaneously. This can provide a compact acquisition architecture for synchronized dual-camera systems.

Connectivity, Cable Length and PoCL

Camera Link uses a dedicated point-to-point cable connection between the camera and frame grabber.

Dedicated Camera Connection

Each Camera Link camera connects directly to compatible acquisition hardware. This avoids shared network bandwidth and simplifies deterministic image transfer.

Cable Length

The original Camera Link specification was designed around cable lengths of up to approximately 10 m. Actual supported distance can depend on the camera, pixel clock, cable quality, and acquisition hardware, while specialized extenders can support longer installations.

Mini Camera Link

Mini Camera Link uses the smaller SDR-26 connector format for compact cameras and acquisition hardware, while conventional Camera Link systems commonly use MDR-26 connectors. The smaller connector footprint preserves Camera Link functionality while helping simplify integration in space-constrained imaging systems.

Power over Camera Link

PoCL allows compatible cameras to receive power from the frame grabber through the Camera Link cable. This can reduce separate camera-power wiring and simplify installation.

Camera Link System Considerations

Camera Link provides deterministic acquisition and a mature hardware ecosystem, but several design constraints should be considered.

Dedicated Frame Grabber Requirement

A Camera Link camera normally requires a compatible frame grabber. The camera cannot simply connect to a standard host network or USB interface.

Configuration Compatibility

The frame grabber must support the camera’s Base, Medium, Full, Deca, or Dual Base configuration together with the required tap format and pixel clock.

Cable Reach

Camera Link is optimized for direct camera-to-frame-grabber connectivity rather than very long distributed links. Longer distances may require specialized cables or extenders.

Physical Cabling

Higher Camera Link configurations can require two Camera Link connections, increasing connector and cable requirements compared with Base operation.

Bandwidth Ceiling

Conventional Camera Link reaches a maximum standardized throughput of 850 MB/s. Applications requiring substantially more camera bandwidth may need another interface architecture or Camera Link HS, which is a separate standard and should not be confused with conventional Camera Link.

Example Applications

High-Speed Industrial Inspection

Camera Link cameras are well suited to inspection systems that require predictable acquisition timing, external triggering, and reliable image transfer.

High-Resolution Imaging

Full and Deca Camera Link cameras can support high-resolution image acquisition in scientific, medical, electronics, semiconductor, and other demanding imaging applications.

Line-Scan Imaging

Camera Link has long been used for line-scan applications where continuous data flow and precise timing are critical. Typical applications include web inspection, sorting, printing, surface inspection, and materials analysis.

Metrology and Precision Imaging

Deterministic triggering and direct frame-grabber connectivity make Camera Link useful in measurement systems where acquisition timing must be tightly controlled.

Multi-Camera Vision

Dual Base and scalable multi-frame-grabber architectures can support synchronized camera configurations for multi-view imaging, inspection, and sensor arrays.

Defense, Aerospace and Scientific Imaging

The mature ecosystem, deterministic acquisition path, and availability of high-resolution Camera Link cameras make the interface relevant to specialized imaging systems with long product lifecycles.

Edge AI and Real-Time Analytics

FPGA preprocessing, ROI selection, Compression, Detection, and image enhancement can reduce the amount of raw Camera Link data that must be processed later by a host CPU, GPU, or embedded AI processor.

Modern Camera Link Camera Vendors & Configurations

Camera Link remains available across area-scan, line-scan, high-resolution, color, multispectral, and specialized scientific camera families.

JAI supports Camera Link across both area-scan and line-scan products. Current examples include Mini Camera Link area-scan cameras as well as 16K line-scan configurations.

Basler has supplied Camera Link cameras for industrial imaging, including its ace Camera Link family in Base and higher-performance configurations. Camera Link products remain represented in the A3 compliant-product ecosystem.

Teledyne Vision Solutions supports Camera Link across high-performance imaging ecosystems, including line-scan and specialized imaging applications where deterministic acquisition and frame-grabber integration remain important.

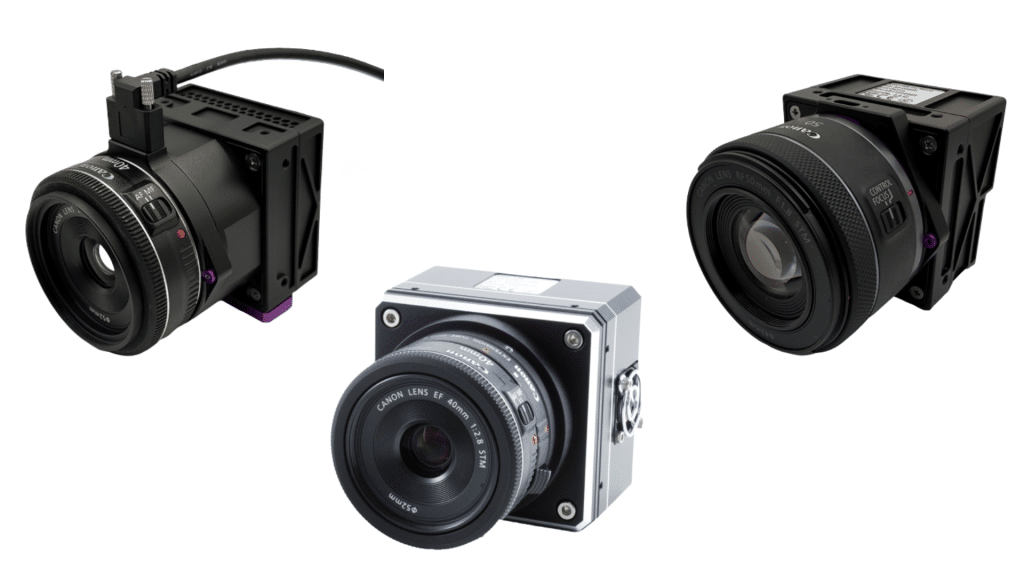

illunis develops high-resolution Camera Link cameras for demanding imaging applications. Its portfolio includes large-format area-scan models designed for industrial, scientific, aerial, defense, and other high-resolution imaging systems.

The important system-design question is therefore not simply whether a camera uses Camera Link, but which configuration it requires, what pixel clock and tap format it uses, and how much sustained data the complete acquisition and processing pipeline must handle.

Camera Link Acquisition Platforms and FPGA Processing

Once the camera requirements are defined, the next step is selecting an acquisition and processing architecture that supports the required Camera Link configuration, pixel clock, triggering, synchronization, and real-time image-processing needs.

Gidel provides PCIe Camera Link frame grabbers and compact Edge AI systems supporting Base, Medium, Full, 80-bit Deca, and Dual Base acquisition, with optional PoCL and inline FPGA processing.

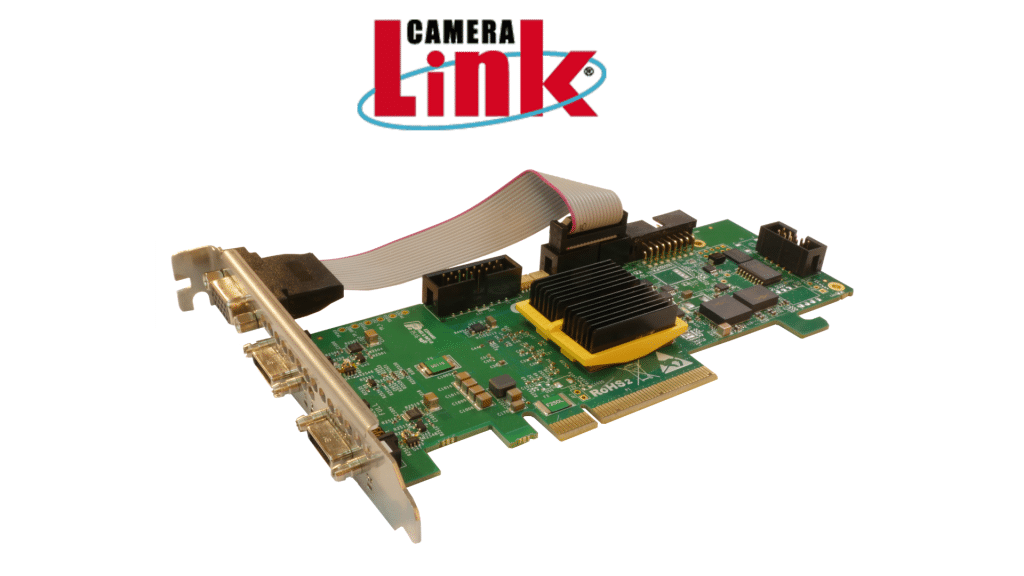

PCIe Frame Grabbers for Camera Link Cameras

High-speed Camera Link cameras require acquisition hardware that matches the camera configuration, tap format, synchronization requirements, and sustained image-data rate.

A Camera Link frame grabber receives image data directly from the camera, handles timing and acquisition, buffers the image stream where required, and transfers data into the host computer through PCIe.

Gidel’s HawkEye-CL supports:

• 1 × 80-bit Deca Camera Link camera
• 1 × Full Camera Link camera
• 1 × Medium Camera Link camera
• 1 × Base Camera Link camera
• Dual Base operation
• Optional PoCL

The HawkEye-CL supports Camera Link acquisition up to 6.8 Gb/s together with optional inline FPGA image processing and up to 17 GB of onboard memory.

Gidel’s Camera Link frame-grabber architecture supports deterministic acquisition together with FPGA-based processing directly in the image path.

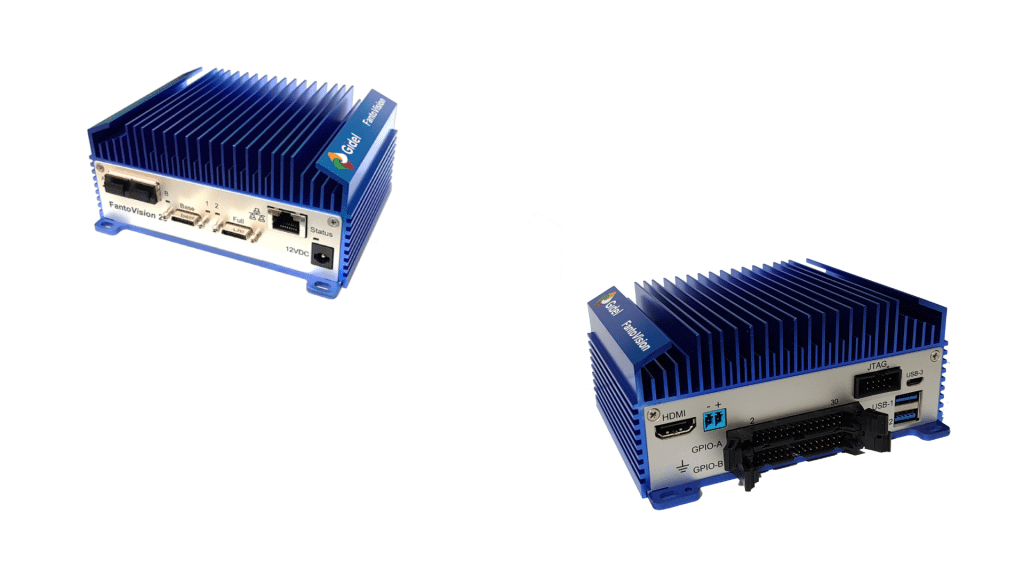

Edge AI Systems with Camera Link Frame Grabbers

Applications that benefit from a compact embedded architecture can use an integrated Edge AI system instead of a conventional host computer with a PCIe frame grabber.

Gidel’s FantoVision20-CL combines an NVIDIA Jetson processor, Altera FPGA, and integrated Camera Link acquisition in a compact system. It supports Deca, Full, Medium, Base, and Dual Base configurations with acquisition bandwidth up to 6.8 Gb/s. The system combines FPGA-based camera acquisition and preprocessing with NVIDIA Jetson CPU/GPU computing for AI inference, application processing, recording, and streaming.

This creates two distinct architecture options:

Gidel PCIe Camera Link frame grabber:
Installed in a host computer and provides Camera Link acquisition, optional FPGA processing, and high-speed PCIe transfer for host-side processing, storage, and application execution.

Gidel Mini Edge AI system with Camera Link frame grabber:
A complete compact embedded vision system integrating Camera Link acquisition, FPGA processing, and NVIDIA Jetson CPU/GPU computing in one platform.

For applications requiring both GigE Vision and Camera Link cameras, the FantoVision20 combines Dual 10 GigE Vision and Camera Link acquisition support.

Real-Time FPGA Image Processing for Camera Link Acquisition

High-speed Camera Link cameras can generate more image data than the host application needs in raw form.

Gidel FPGA-based acquisition platforms can optionally process data while it is being acquired. Available functions include Compression, Detection, ROI/data reduction, HDR correction, custom FPGA processing, and other real-time image-processing operations.

Processing data directly in the acquisition path can help:

• Reduce host bandwidth and storage requirements
• Lower host CPU/GPU load
• Preserve low-latency operation
• Execute deterministic processing
• Reduce data volume before recording, streaming, or AI inference

This is particularly useful in high-resolution, line-scan, and high-frame-rate Camera Link systems where deterministic processing must operate continuously with acquisition.

ISP and Image Enhancement

High-resolution Camera Link cameras may require dedicated ISP and image-enhancement functions before display, recording, analysis, or AI inference.

When the camera does not already implement these functions, the FPGA acquisition path can execute them before data reaches the host CPU or GPU.

Depending on the sensor and application, processing may include debayering, white balance, gain and offset correction, HDR correction, bad-pixel correction, non-uniformity correction, dynamic luminance balancing, and color or luminance optimization.

Gidel acquisition platforms can integrate selected ISP and image-processing functions directly into the FPGA path using existing Gidel capabilities, customer-developed IP, or application-specific algorithms.

Inline ISP processing can reduce host CPU/GPU load, preserve low latency, and prepare image data earlier for recording, streaming, visualization, analysis, or AI processing.

Building Your Own ISP with Gidel Platforms

Gidel platforms provide several ways to build and customize an FPGA-based ISP pipeline. Customers can use Gidel’s off-the-shelf image-processing algorithms, integrate their own FPGA algorithms, develop new processing functions using Gidel’s ProcVision Suite, or work with Gidel to develop application-specific algorithms.

These approaches can also be combined within the same pipeline, allowing existing Gidel functions, customer-developed IP, and newly developed algorithms to operate together directly in the FPGA acquisition path.

Using ProcVision Suite, experienced FPGA developers can implement application-specific stages such as debayering, gain and offset correction, HDR, image enhancement, ROI handling, Detection, Compression, and other custom processing functions.

This flexibility allows the pipeline to be tailored to the camera, sensor, and application while executing deterministically before data reaches the host CPU, GPU, or Jetson processor.

Multi-Camera Synchronization and Scalable Acquisition

Multi-camera Camera Link systems require more than sufficient aggregate bandwidth. Frames must also be acquired with deterministic timing and controlled synchronization.

Gidel’s InfiniVision architecture is designed for scalable synchronized acquisition across multiple cameras and acquisition systems. Configurations can scale to 100+ synchronized Camera Link cameras while retaining FPGA-based data handling.

This architecture is relevant to applications such as:

• Synchronized multi-view imaging
• Volumetric imaging
• 3D vision
• Line-scan arrays
• Large inspection systems
• Defense and scientific imaging
• Distributed acquisition systems

Camera Link Camera Alternative for Development and Validation

During early-stage development, system integration, and validation, engineers may not always have access to the final Camera Link camera or may need repeatable image streams that are difficult to reproduce with a physical camera. A Camera Link simulator can generate controlled video streams and test patterns, allowing frame grabbers, processing pipelines, triggering, and system behavior to be validated under repeatable conditions.

Gidel’s CamSim-CL is a Camera Link camera simulator supporting Base, Medium, Full, and 80-bit Deca configurations. It can generate programmable Camera Link image streams and provides a practical alternative to physical Camera Link cameras during development and validation.

So, Which Camera Link Camera Is Right for You?

There is no single “best” Camera Link camera for every application. The right choice depends on sensor requirements, Camera Link configuration, frame rate, pixel depth, triggering, synchronization, and downstream processing capacity.

Moderate-Bandwidth Imaging:
Base Camera Link can be a practical choice where the required image stream fits within the available bandwidth and system simplicity is important.

Higher-Resolution and Higher-Frame-Rate Imaging:
Medium and Full Camera Link provide additional bandwidth for cameras that exceed Base performance.

Maximum Camera Link Throughput:
80-bit Deca supports the highest standardized conventional Camera Link bandwidth, up to 850 MB/s, for demanding area-scan and line-scan applications.

Dual-Camera Systems:
Dual Base configurations can support two Base cameras from compatible acquisition hardware while retaining direct deterministic connectivity.

Line-Scan and Precision Imaging:
Prioritize camera and frame-grabber compatibility, tap configuration, triggering, and deterministic timing. These factors are often as important as the nominal interface bandwidth.

Compact and Embedded Deployments:
Camera Link cameras can be paired with Edge AI platforms combining FPGA-based acquisition with NVIDIA Jetson CPU/GPU processing.

High-Throughput and Data-Intensive Pipelines:
Inline FPGA processing for Compression, ISP, HDR, Detection, or data reduction can reduce host bandwidth, storage requirements, and CPU/GPU load.
