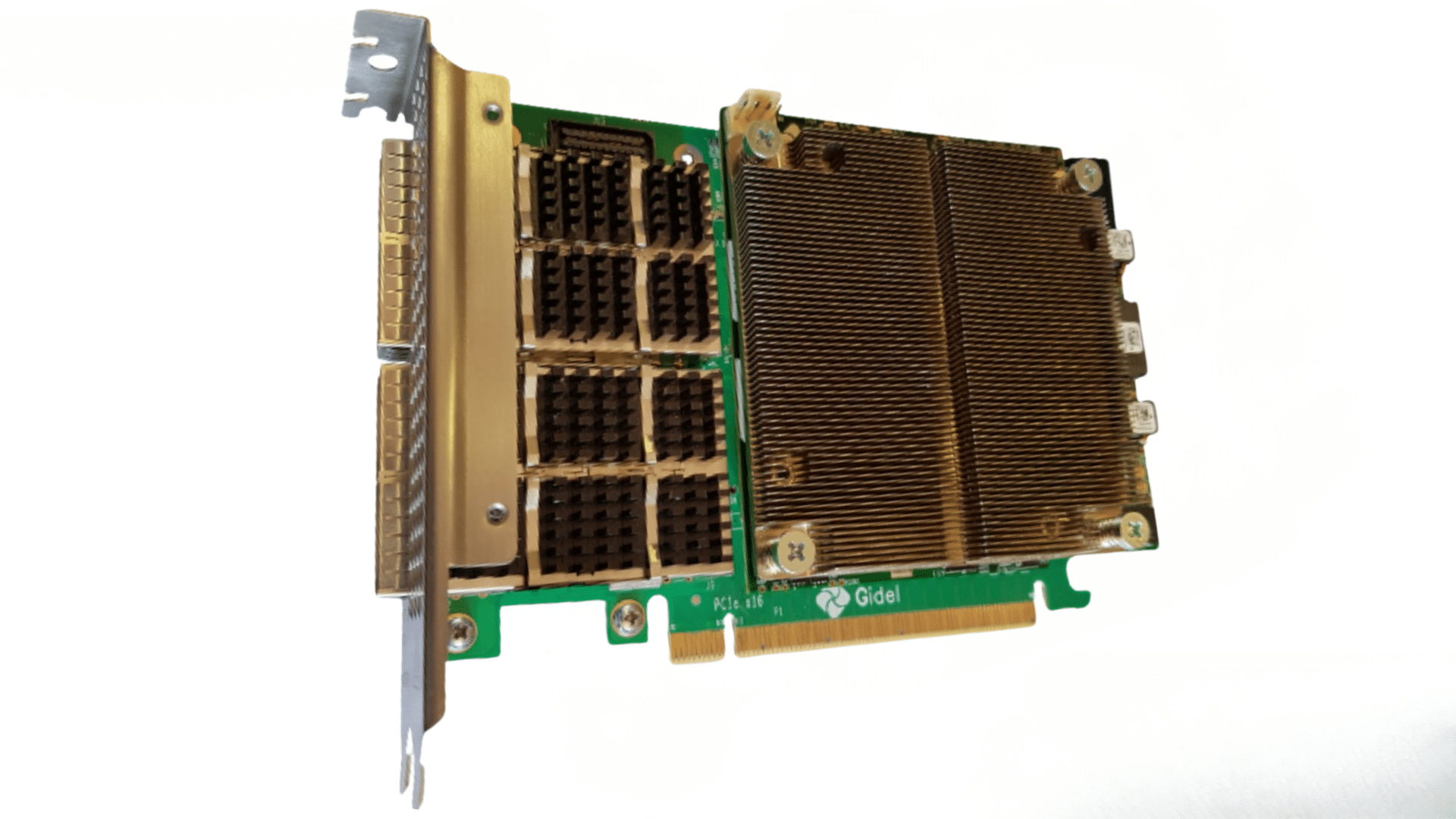

Proc1C10M – High-Performance FPGA Accelerator Card with HBM2 Technology
The Proc1C10M™ is a compact, ultra-high-performance accelerator card built on Altera Stratix 10 MX. Designed for compute-intensive, low-latency, and high-bandwidth applications, it not only delivers massive processing power but also integrates HBM technology with up to 1,600 Gb/s of I/O bandwidth. As a result, this FPGA accelerator ensures unmatched data throughput for today’s most demanding workloads.
Unmatched Performance
This compute accelerator integrates 16 × 25 Gb/s full-duplex transceivers and a multi-level memory architecture. Additionally, the memory ecosystem includes embedded MLABs and M20K, tightly coupled HBM and eSRAM, and up to 128 GB DDR4. Therefore, the Proc1C10M offers exceptional processing capabilities and consistent low-latency performance for HPC, AI acceleration, storage, networking, and high-end imaging workloads.
Connectivity & Scalability
The half-length PCIe Gen3 x16 accelerator card includes 4 × QSFP28 ports, a Gidel PHS connector for daughterboards, and 19 GPIOs for peripheral control. Furthermore, the PHS supports up to 128 Gb/s Rx/Tx, enabling seamless integration with 8× CoaXPress-12 cameras via a Gidel CXP daughterboard. Consequently, the Proc1C10M is ideal for vision-intensive and real-time applications.
Development Tools
Supported by Gidel’s advanced development suite, the Proc1C10M FPGA accelerator card simplifies complex project deployment. Moreover, it supports development in both C and HDL, reducing integration time, improving reliability, and accelerating time-to-market.
Why Choose the Proc1C10M Accelerator Card?
-
HBM technology for 10X more DRAM and eSRAM bandwidth
-
1,600 Gb/s I/O bandwidth for high-throughput applications
-
Compact PCIe design with flexible I/O
-
Optimized for HPC, acceleration, networking, storage, and imaging workloads
For more accelerator card options, visit FPGA Compute Acceleration – Gidel
Target applications
General
- 8GB HBM
- 7,920 embedded 18x19 multipliers
- 134 Gb embedded M20K and 11 Gb MLAB blocks
- 2,073,000 LEs
- 7,920 18 x19 MAC
- Embedded M20K & MLAB blocks
- 16 x 26 Gb/s transceivers
- Flexible clocking system
- Temperature monitoring
- Internal voltage monitoring
Connectivity
- 4 x QSFP+
- 1 x PHS (Gidel High Speed Connector for daughter boards)
Environmental conditions
- Continuous Operation: 10 - 80% (non-condensing)
- Peak Operation: 10 - 90% (non-condensing)
Development tools
- Generation of FPGA environment code, including all board/IP constraints and a user-logic wrapper
- Generation of a dedicated application driver with an API
- Splitting physical on-board memories into logical memories, each with independent, parallel access to/from user logic
The Proc1C10M™ system is based on the Proc10M module mounted on the Gidel Proc1C carrier board.
For additional Proc10M carrier board options models, including options that utilize the Proc10M’s full resources, contact Gidel.
Development Tools
For HDL Design Flow
- Generation of environment FPGA code, including all board/IP constrains and user logic wrapper
- Generation of dedicated application driver with API support
- Splitting of physical on-board memories into logical memories with independent parallel access to/from user logic
- Altera Tools: Quartus Prime Pro, including QSys and DSP builder
