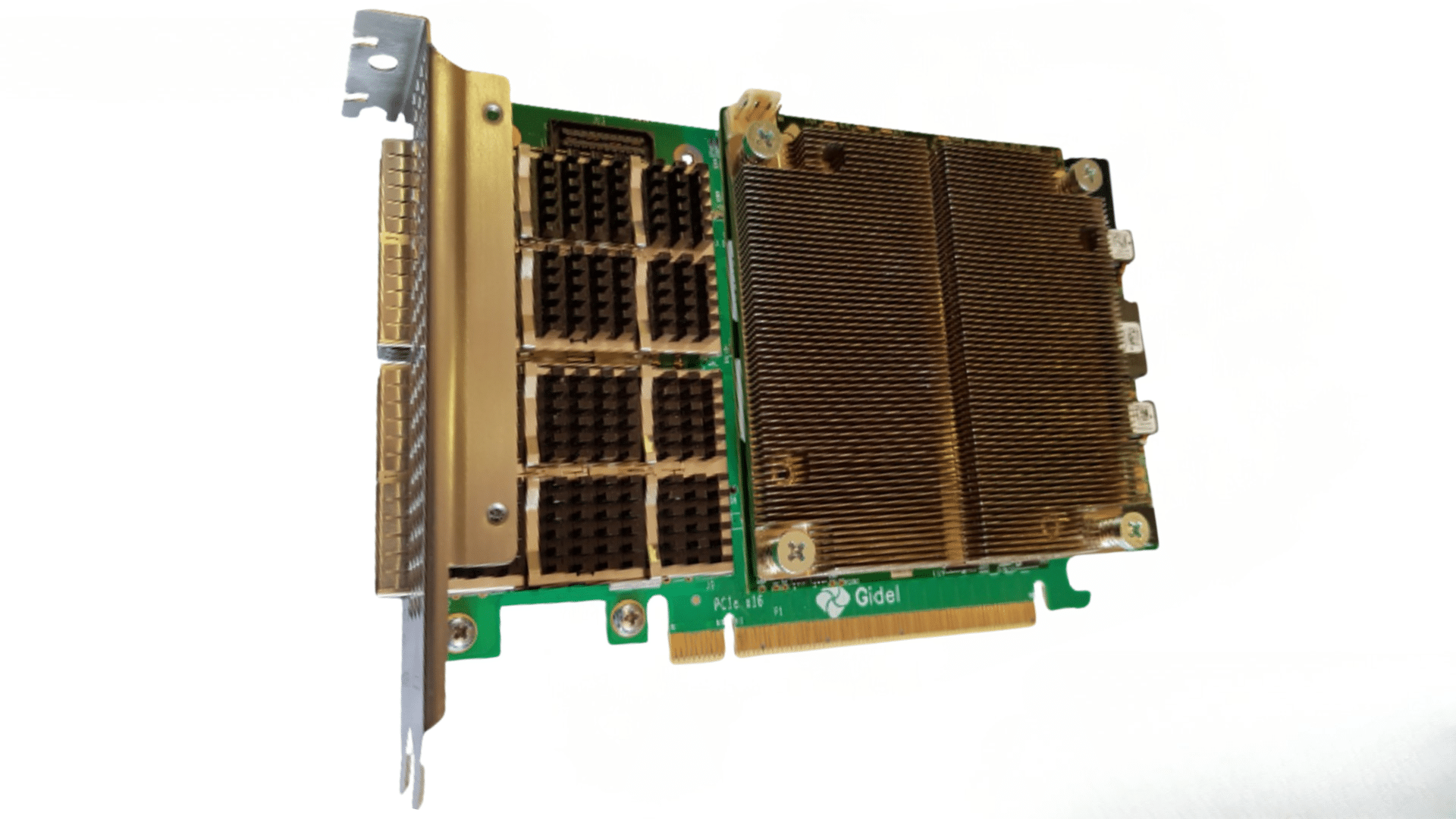

Proc1C10N: AI-Optimized FPGA Accelerator with HBM2 Technology
The Proc1C10N™ is a compact, ultra-high-performance FPGA accelerator built on Altera Stratix® 10 NX FPGA. Designed for AI-driven, compute-intensive, and high-bandwidth applications, it not only integrates embedded Tensor blocks with HBM2 memory but also delivers 143 INT8 TOPS / FP16 TFLOPS of processing power. As a result, this FPGA accelerator provides exceptional throughput and efficiency for advanced AI workloads.
AI Performance and Memory
This AI-focused compute accelerator combines 16 × 25 Gb/s full-duplex transceivers with a robust multi-level memory architecture. Additionally, it features embedded MLABs and M20K, tightly coupled HBM2 and eSRAM, and supports up to 128 GB DDR4. Therefore, the Proc1C10N achieves ultra-low latency and high bandwidth, making it ideal for AI acceleration, HPC, networking, and edge-compute environments.
Connectivity and Expansion Options
The half-length PCIe Gen3 x16 board includes 4 × QSFP28 ports, a Gidel PHS connector for daughterboards, and 19 GPIOs for peripheral control. Furthermore, the PHS enables up to 128 Gb/s Rx/Tx, ensuring seamless integration with 8× CoaXPress-12 cameras via a Gidel CXP daughterboard. Consequently, the Proc1C10N is well-suited for real-time vision and edge AI applications.
Development Tools
Supported by Gidel’s advanced development suite, the Proc1C10N FPGA accelerator streamlines integration and shortens development cycles. Moreover, it supports C and HDL-based design, reducing engineering effort, enhancing reliability, and accelerating time-to-market.
Why Choose the Proc1C10N FPGA Accelerator?
-
Embedded Tensor blocks for optimized AI performance
-
HBM2 memory for 10X more DRAM and SRAM bandwidth
-
143 INT8 TOPS / FP16 TFLOPS for high-demand AI workloads
-
Compact PCIe design for versatile system integration
For more accelerator card options, visit FPGA Compute Acceleration – Gidel
Target applications
General
- 8GB HBM
- 7,920 embedded 18x19 multipliers
- 134 Gb embedded M20K and 11 Gb MLAB blocks
- 2,073,000 LEs
- 7,920 18 x19 MAC
- Embedded M20K & MLAB blocks
- 16 x 26 Gb/s transceivers
- Flexible clocking system
- Temperature monitoring
- Internal voltage monitoring
Connectivity
- 4 x QSFP+
- 1 x PHS (Gidel High Speed Connector for daughter boards)
Environmental conditions
- Continuous Operation: 10 - 80% (non-condensing)
- Peak Operation: 10 - 90% (non-condensing)
Development tools
- Generation of FPGA environment code, including all board/IP constraints and a user-logic wrapper
- Generation of a dedicated application driver with an API
- Splitting physical on-board memories into logical memories, each with independent, parallel access to/from user logic
The Proc1C10N™ system is based on the Proc10N module mounted on the Gidel Proc1C carrier board.
For additional Proc10N carrier board options models, including options that utilize the Proc10N’s full resources, contact the Gidel Sales.
Development Tools
For HDL Design Flow
- Generation of environment FPGA code, including all board/IP constrains and user logic wrapper
- Generation of dedicated application driver with API support
- Splitting of physical on-board memories into logical memories with independent parallel access to/from user logic
- Altera Tools: Quartus Prime Pro, including QSys and DSP builder
