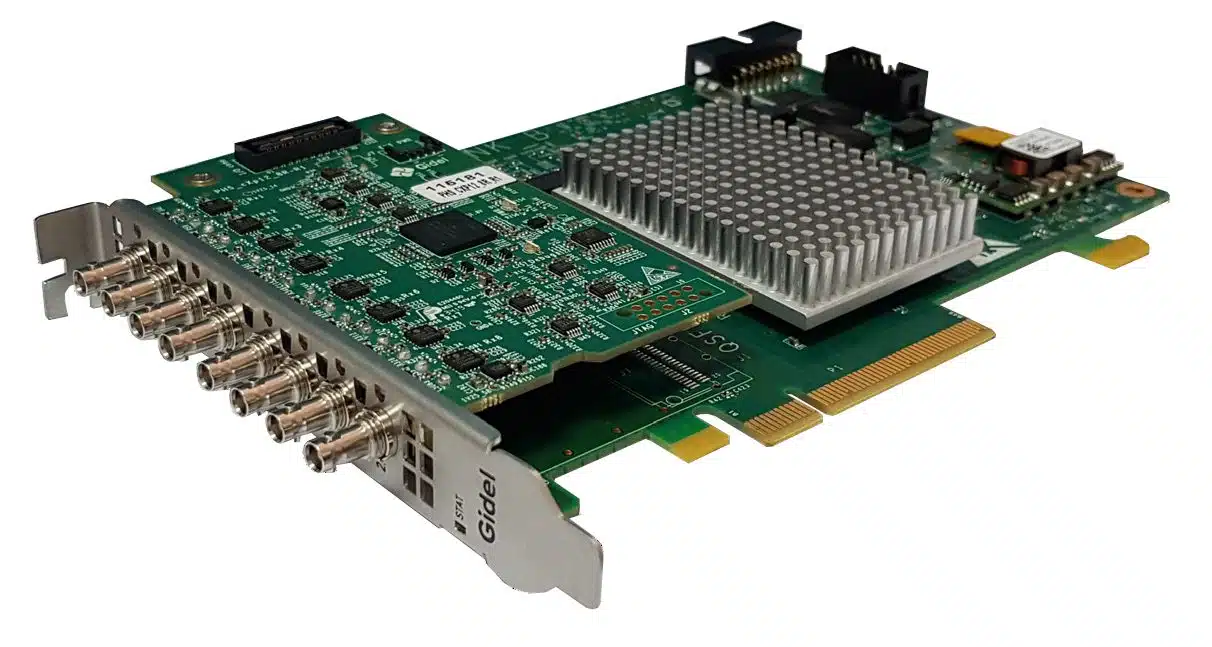

Proc10A-CXP:

Octo CoaXPress-6 Frame Grabber

8 x CXP-6 Frame grabber & Image Processing System

Up to 50 Gb/s bandwidth via 8 x CoaXPress-6 links
Ideal for Recording & Streaming solutions
Inline FPGA image processing options include:
- Real-time detection for object, event, or feature identification
- On-FPGA real-time compression: JPEG, Lossless, Quality+
- Real-time High Dynamic Range (HDR) correction
Supports 100+ synchronized cameras using the InfiniVision
Memory: up to 33 GB
Form factor: full-height, single-slot, half-length PCI Express card

Octo CoaXPress-6 Frame Grabber

The Proc10A-CXP is a high-performance Octo CXP-6 Frame Grabber designed for real-time image acquisition, processing, and compression in demanding multi-camera vision environments. Powered by Altera Arria 10 FPGA technology, it supports up to 8 × CXP-6 links, delivering simultaneous acquisition from up to 8 cameras with 33 GB on-board memory. As a result, it ensures zero frame loss, ultra-low latency, and negligible CPU load, making it ideal for mission-critical applications.

Octo CXP-6 Acquisition with Real-Time FPGA Image Processing

The Proc10A-CXP is available as a plug-and-play CXP-6 frame grabber or as part of a complete Imaging & Vision system with real-time FPGA preprocessing, image enhancement, and compression options.

The built-in FPGA can process image data during acquisition, before it reaches the host PC. This helps reduce bandwidth, storage, and host processing load while preserving low-latency performance for high-speed camera streams.

Optional FPGA processing includes Compression, HDR correction, Detection, and additional image enhancement modules.

Real-Time FPGA Processing Helps Enable:

Reduced bandwidth for high-throughput image acquisition
Low-latency processing directly in the acquisition flow
Extended recording time through real-time compression
Lower host processing load by offloading selected tasks to the FPGA
Custom image pipelines using Gidel IPs or user FPGA logic

For the full list of available image processing and enhancement options, please refer to the Options tab.

Flexible Operating Modes

The Proc10A-CXP supports two operating modes selectable via firmware:

InfiniVision: Ideal for synchronized multi-camera setups, combining all camera data—even across multiple cards—into a single buffer with support for dynamic resolutions and formats.
ProcFG: Optimized for line-scan cameras, offering fixed frame sizes, pixel formats, and ROI grabbing (uncompressed).

As a result, the Proc10A-CXP adapts to diverse workflows, from complex multi-camera systems to single-camera applications requiring consistent, high-performance acquisition.

InfiniVision: Multi Camera Acquisition and Synchronization

Gidel’s InfiniVision architecture addresses critical multi-camera challenges, including bandwidth, synchronization, connectivity, and scalability. Consequently, the Proc10A-CXP, Octo CXP-6 frame grabber supports up to 8 × CXP-6 links, enabling 1–8 cameras to operate seamlessly with consistent high-speed throughput.

Additionally, a PCIe Gen3 x8 interface ensures CPU-free, ultra-fast data transfer, while on-board 33 GB buffers enhance acquisition stability and enable real-time FPGA-based image processing. As a result, the Proc10A-CXP delivers reliable performance in high-resolution, high-speed imaging systems.

SDK and Development Tools

The Proc10A-CXP is supported by Gidel’s SDK, featuring intuitive GUIs and APIs for easy integration. Moreover, the ProcVision Suite adds advanced FPGA programming, debugging, and validation tools, enabling rapid customization of data pipelines, real-time processing, and compression workflows. Consequently, developers can deploy optimized, application-specific solutions faster and with reduced risk.

Why Choose the Proc10A-CXP Frame Grabber?

Octo CXP-6 FPGA frame grabber for high-speed multi-camera image acquisition
Up to 50 Gb/s aggregate input bandwidth
FPGA architecture for low-latency acquisition, processing, recording, and streaming
Flexible operating modes for multi-camera and precision setups
Advanced SDK and ProcVision Suite for rapid development and integration
Optional real-time FPGA processing, image enhancement, and compression IPs

The Proc10A-CXP is the ideal choice when your workload requires high-bandwidth CXP-6 acquisition, low-latency FPGA processing, and reliable image transfer to a host PC.

General

Supported Protocol

CoaXPress 2.1

Camera Input Options

Up to 8 x CoaXPress-6 links
PoCXP support

Camera Input Connectors

8 x Micro-BNC

Supported CXP Downlink Speeds

1.25 Gb/s | CXP-1
2.5 Gb/s | CXP-2
3.125 Gb/s | CXP-3
5 Gb/s | CXP-5
6.25 Gb/s | CXP-6

Supported CXP Uplink Speeds

20.83 Mbps (CXP-1 to CXP-6)

Maximum Stream Packet Size

8,192 bytes

Additional Connectors

JTAG
VGA15-pin for connecting GPIO's to the bracket
16-pin board-to-board header

Advanced ROI feature

On-the -fly selective ROI acquisition

Image Formats

Mono, Bayer, RGBA (8, 10, 12, 14 and 16 bits/color)
RGB (8, 10 and 12 bits/color)

Max Resolution

Horizontal: 16 K pixels (64-bit)
Vertical: 65 K lines

Maximum Acquisition Throughput

40 Gb/s

Real-Time FPGA Image Compression

Supports optional FPGA-based compression options.
For the full list, please refer to the Options tab.

Real-Time FPGA Image Processing & Enhancements

Supports optional FPGA image processing and enhancement modules.
For the full list, please refer to the Options tab.

Compression & Image Enhancements

Compression Options:

Image Enhancements Options:

High Dynamic Range (HDR) correction

For more modular image-processing options - Contact Us

Host Bus

PCIe x8 Gen. 3

On Board Memory

Up to 17 GB

Camera Types

Area
Line Scan

Form Factor

Single-slot, full-height half-length PCIe card

GPIO

External IO - 12 x LVTTL

Cooling

Passive cooling
Active cooling (Fan)

MTBF (with passive cooling)

> Million hours (With Passive Cooling)

Environmental conditions

Temperature

Operating ambient air temperature: 0 – 55° C

Humidity

Continuous Operation: 10 - 80% (non-condensing)
Peak Operation: 10 - 90% (non-condensing)

Environmental Compliance

Real-Time FPGA Image Compression

Real-Time FPGA Image Processing & Enhancements

HDR Correction – High Dynamic Range correction from a single exposure
Detection – Enables real-time object, event, or feature detection at the acquisition stage
Chromatic Aberration Correction – Reduces color fringing caused by optical misalignment
Dynamic Luminance Balance – Preserves consistent brightness under changing illumination
White Balance – Maintains color accuracy across variable lighting conditions
NUC – Non-uniformity correction for improving sensor response consistency
BPR – Bad pixel replacement for correcting defective or unstable pixels
Morphological operations – Open/Close operations using a round structuring element

User FPGA code

Users can integrate their own FPGA code alongside Gidel IPs.

For more information, refer to the FPGA Processing tab

Power

PoCXP 32W
PoCXP 42W

CXP Links

1 x CXP-6 link
2 x CXP-6 links
4 x CXP-6 links
8 x CXP-6 links

The Proc10A-CXP Frame Grabber is a highly modular solution, designed to be tailored to meet unique application requirements.

Looking to adapt the Proc10A-CXP to match your vision?

Contact Our Experts

The Proc10A-CXP frame grabber offers two powerful customization paths to meet specific application requirements:

Pre-Configured FPGA Features
Gidel develops a range of pre-embedded modules tailored to your specifications, including real-time compression, image processing, and enhancement options.
For the full list of image processing and enhancements, please refer to the Options tab.
User-Level FPGA Customization
Leverage Gidel’s development tools and IP libraries to integrate your proprietary FPGA logic and extend the system’s capabilities for acquisition, image processing, and control.

The Gidel ProcVision Suite delivers a complete toolchain for advanced user-level FPGA customization of the data flow, image pipeline, image processing, and more, ensuring optimal performance for your vision or imaging application.

Gidel can also integrate customer algorithms into the FPGA or develop custom FPGA logic according to specific application requirements.

Proc10A-CXP: FPGA resource comparison

Model	Proc10A-CXP-027	Proc10A-CXP-066	Proc10A-CXP-115
FPGA	Altera Arria 10 GX 270	Altera Arria 10 GX 660	Altera Arria 10 GX 1150
FPGA-ALM	101,620	250,540	427,200
FPGA-M20K	750	2,133	2,713
FPGA - 18 x 19 Multiplier	1,660	3,556	3,036
Peripheral Memory:
DRAM A capacity	1 GB	1 GB	1 GB
DRAM A sustain bandwidth	5.6 GB/s	5.6 GB/s	5.6 GB/s
SoDIMM B capacity	0, 8,16 GB	0, 8,16 GB	0, 8,16 GB
SoDIMM B sustain bandwidth	8.96 GB/s	8.96 GB/s	8.96 GB/s
SoDIMM C capacity	0, 8,16 GB	0, 8,16 GB	0, 8,16 GB
SoDIMM C sustain bandwidth	8.96 GB/s	8.96 GB/s	8.96 GB/s

Grabbers SDK

InfiniVision

Designed for acquisition from a large number of cameras (100+), with an option for embedded real-time compression.

ProcFG

Optimized for line-scan camera acquisition, combining ROI-based grabbing with integrated debugging and analysis tools.

Application Interfaces

GUI Applications

InfiniVision
ProcFG
CameraConfig – Camera discovery and configuration
ggvcon – GigE Vision network configuration

APIs

InfiniVision with supporting examples
ProcFG with supporting examples
Gen<i>Cam GenTL producer libraries compatible with C/C++ compilers
InitCam for developing user Gen<i>Cam camera configuration application
GigE for developing camera network communication applications

Software Compatibility

Third-party software

MVTec Halcon machine vision software
Camera control Gen<i>Cam based application

Operation Systems supported

Windows 11
Windows 10
Windows Server 2022
Windows Server 2019
Windows Server 2016
Linux (kernel 2.6.x- 6.12)

Please note: Linux version doesn’t include the ProcFG/InfiniVision GUI, just the API.
