Ultra-Compact FPGA Modules


The turn-key solution for faster development of your embedded system

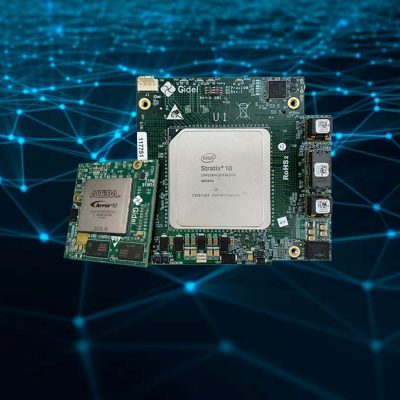

Gidel offers ultra-compact, high-performance FPGA modules. Users can mount these modules on a Gidel PCIe carrier board or a custom carrier board.

The modules provide a complete FPGA envelope ready for use. They allow flexibility to tailor the peripheral system to system specifications via the carrier board. For custom carrier solutions, Gidel provides templates and powerful development tools. These tools enable users to quickly develop the carrier board. They also help optimize FPGA utilization for system design.

Gidel’s diverse module offerings include ultra-high-end modules based on Intel Stratix 10NX and MX FPGAs and high-end ultra-compact solutions based on Intel Arria 10 FPGAs.

Gidel’s diverse modules include ultra-high-end options with Intel Stratix 10NX and MX FPGAs. The offerings also include high-end, ultra-compact solutions with Intel Arria 10 FPGAs.

Ultra-compact FPGA modules comparison table:
FPGA
Arria 10 160 GX
Arria 10 270 GX
Arria 10 660 GX
Stratix 10 NX 2100
Stratix 10 MX 2100
DRAM Throughput
12.8 GB/s
12.8 GB/s or       24 GB/s
16.8 GB/s
300 GB/s
300 GB/s
On-board DDR4
2 or 4 GB
2  or 10GB
9 GB
Up to 128 GB on Carrier board
Up to 128 GB on Carrier board
On-FPGA DRAM
8 GB HBM2
8 GB HBM2
Transceivers
12 (2 Rx only)
12 or 16 (2 Rx only)
12 or 16 (2 Rx only)
72
72
Transceivers speed
Up to 14.2 Gb/s
Up to 14.2 Gb/s
Up to 14.2 Gb/s
Up to 26 Gb/s
Up to 26 Gb/s
I/Os
12×3.0V, 4×1.2V, 36×1.8V
12 or 42×3.0V, 4×1.2V,          36 or 52×1.8V
12 or 42×3.0V, 4×1.2V,          36 or 52×1.8V
Up to 374 I/Os: 26×3.3V, 96xLVDS,      72-bit DDR4
Up to 374 I/Os: 26×3.3V, 96xLVDS,      72-bit DDR4
Dimensions
49mm x 54mm
58mm x 58mm
58mm x 58mm
97.4mm x 101mm
97.4mm x 101mm
LEs
160K
270K
660K
2,073K
2,073K
FPGA SRAM
94.5 Mb @ 90 GB/s
94.5 Mb @ 90 GB/s
M20K
440
750
2133
6800
6800
18×19 MAC
312
1660
3374
7,920
INT8/FP16 Tensor MAC
118,800
