10+ GigE Frame Grabbers / Smart NICs

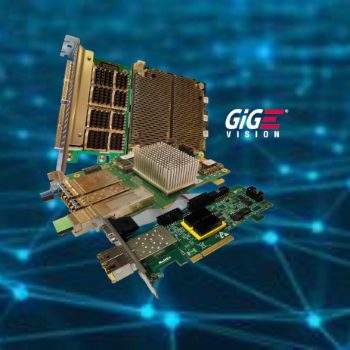

GigE-Vision Frame Grabbing and Image Processing Family

Boost your GigE Vision System Performance and Reduce Costs
Gidel’s grabbers boosts your system’s overall performance by enabling from 1 to 100+ GigE Vision data acquisition and  processing with virtually zero CPU utilization, freeing it for key post-processing tasks.  As a result, your system can support greater amount of cameras as well as ultra-high bandwidth cameras while guaranteeing zero frame loss.  Thus, data acquisition is fully reliable and system processing is substantially enhanced. Optional FPGA pre-processing includes real-time image processing, image enhancement, compression and more. The Gidel GigE-Vision smart NIC family offers a variety of flavors to meet diverse needs, including the 2 x 10 GigE HawkEye family, the 40/60 GigE Proc10A family, and the 100+ GigE Proc10N/M family.  The grabbers support link aggregation, chunk data (payload type: 0x4001) transmission, ROI capture capability, and comprehensive system I/Os.

Gidel’s GigE-Vision frame grabbers accommodate diverse application needs, from a plug-and-play high-performance frame grabber to a fully customized system solution comprising acquisition, FPGA image processing, real-time image compression, multi-camera synchronization and complex I/O system control.

Optimized for Multi-Camera Application
Gidel’s unique GigE InfiniVision grabber architecture is designed to address key challenges of multi-camera applications, including bandwidth bottlenecks, camera synchronization, acquisition reliability, costs, scaling, compactness, and more. The InfiniVision grabber architecture can support 100+ GigE Vision cameras simultaneously; the cameras’ data captured and packed in single buffer ready for immediate post-processing in user’s memory space.  A single system can support as much as 12 x 10 GigE cameras connected directly to the board and over 100 cameras via a switch.  The system’s compactness and ease-of-use reduces the complexities of developing multi-camera systems and reduces the overall system costs.

AI on the Edge: Embedded GigE Vision Computer
Combining NVIDIA and Gidel’s cutting edge GigE Vision technology in a single compact computer provides multi-camera, autonomous AI power on the edge.  The key benefits are robustness, compactness, high bandwidth, and strong AI and image processing on the edge.  Check out our FantoVision embedded computers with integrated GigE Vision, Camera Link or CoaXPress interfaces!

Frame Grabbers

Our frame grabber board for your system

HawkEye-20GigE

Dual-Port 10 GigE Frame-Grabbing & Image Processing System

Proc10A-40/60GigE

Proc10A 40/60 GigE Frame Grabber/Smart NIC

Proc1C10M-100+ GigE

Ultra high-performance Stratix 10 MX for real-time processing

Edge Computers

Our ready-to-use edge computers with built-in 10GigE frame grabber

FantoVision20

Edge Computer with integrated 2x10GigE frame grabber

FantoVision40

Edge Computer with integrated 4x10GigE frame grabber

GigE frame grabbers resources

System block diagram

GigE frame grabber system block diagram

Open
Video: Gidel frame grabbers and edge computers

Presentation at the Embedded World show 2024

Watch
Gidel Frame grabbers introduction

Gidel high-performance frame grabbers at Embedded World 2022

Watch
