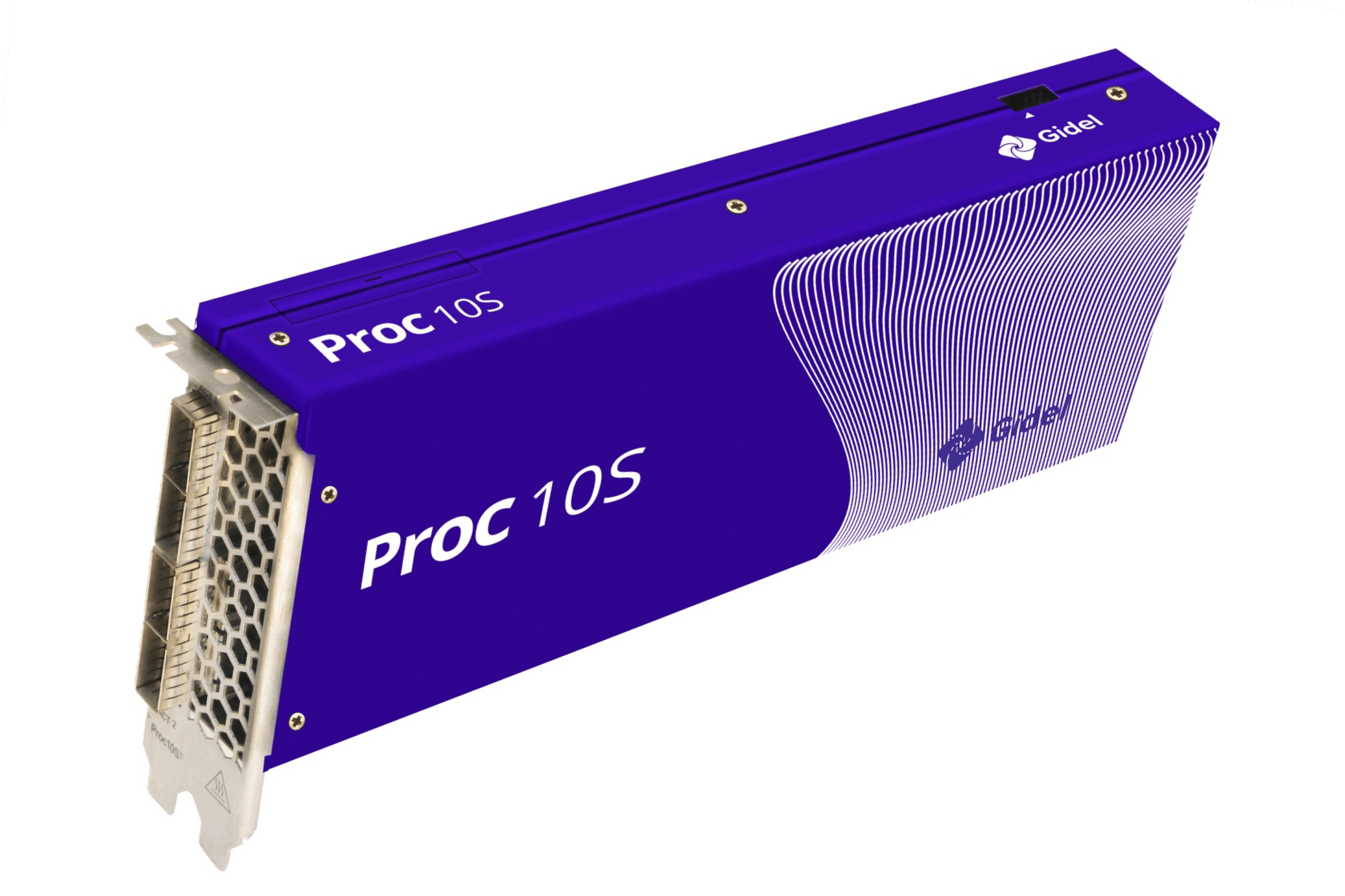

Proc10S: Accelerator Board
The Proc10S™ is a high-performance, scalable accelerator board built on Altera Stratix® 10 GX FPGA technology. Designed for compute-intensive, high-bandwidth, and low-latency workloads, it not only delivers peak single-precision performance of up to 10 TFLOPS but also ensures the flexibility needed for next-generation Data Centers applications. With 2.8 million logic elements, 260 GB DDR4 memory, and an optional Quad-core 64-bit ARM Cortex-A53 processor, the Proc10S provides the processing power and adaptability required for evolving infrastructures.
Performance and Memory
This powerful accelerator integrates a 16-lane PCIe Gen3 interface with 25/14.1 Gb/s SERDES transceivers for ultra-fast connectivity. Additionally, it supports up to 400 Gb/s throughput via 4 × QSFP28 or a combination of 2 × QSFP28, 2 × SFP28, and Gidel’s proprietary high-speed PHS connector. As a result, the Proc10S delivers unmatched bandwidth and responsiveness for HPC, storage, networking, and real-time data-processing environments.
Connectivity and Expansion Options
The Proc10S offers abundant I/O and expansion capabilities, ensuring seamless integration into diverse Data Centers infrastructures. Furthermore, its flexible architecture supports a wide range of applications, including broadcasting, video analytics, 5G infrastructure, and security tasks such as deep packet inspection and fraud detection. Consequently, it provides the scalability and versatility required to address the most demanding workloads.
Development Tools
Supported by Gidel’s advanced development suite, the Proc10S accelerator board streamlines integration and simplifies development. Moreover, it supports C and HDL-based workflows, reducing engineering effort, enhancing reliability, and shortening time-to-market for mission-critical solutions. In addition, its robust toolchain allows developers to maximize FPGA resources efficiently, ensuring long-term value in high-performance environments.
Why Choose the Proc10S Accelerator Board?
-
Altera Stratix® 10 FPGA with up to 2.8 million logic elements.
-
260 GB DDR4 memory with optional ARM Cortex-A53 SoC.
-
Up to 10 TFLOPS single-precision performance.
-
400 Gb/s total I/O bandwidth with PCIe Gen3 × 16 and QSFP28 ports.
-
Ideal for Data Centers, HPC, 5G, security, and AI workloads.
For more accelerator board options, refer to FPGA Compute Acceleration – Gidel
General
- Embedded MLAB (640-bit) SRAM blocks
- 11,721 M20K (20K-bit) SRAM blocks
- Up to 256 GB DDR4 SDRAM SoDIMM with throughput of up to 13.5 GB/s
- 4 GB on-board DDR4 SDRAM with throughput of up to 48 GB/s
- Up to 2,800K logic elements
- H-TILE supporting up to 16x 25 Gb/s SERDES I/O
- For SX devices, Quad-core 64 bit ARM Cortex-A53 MPCore processor
- Peak fixed-point performance 23.0 TMACS
- Peak floating-point performance 9.2 TFLOPS
- M20K blocks at up to 58 TB/s sustain access
- Up to 11,520 18x19 variable precision multipliers
- Up to 10x 25 Gb/s reconfigurable transceivers
- Quad-core 64-bit ARM Cortex-A53 MPCore @ max processor speed of 1.5 GHz
- Flexible clocking system
- Temperature monitoring
- Internal voltage monitoring
- Support for Partial Reconfiguration and CvP
Connectivity
- 4x QSFP28
- 2x SFP28
- Gidel proprietary high-speed (PHS) connector
Environmental conditions
- Continuous Operation: 10 - 80% (non-condensing)
- Peak Operation: 10 - 90% (non-condensing)
Development tools
- Generation of FPGA environment code, including all board/IP constraints and a user-logic wrapper
- Generation of a dedicated application driver with an API
- Splitting physical on-board memories into logical memories, each with independent, parallel access to/from user logic
Please contact us if you need a customized solution!
Development Tools
For HDL Design Flow
- Generation of environment FPGA code, including all board/IP constrains and user logic wrapper
- Generation of dedicated application driver with API support
- Splitting of physical on-board memories into logical memories with independent parallel access to/from user logic
- Altera Tools: Quartus Prime Pro, including QSys and DSP builder
