GigE Vision Cameras: Connectivity, Performance, Integration & Selection

High-Speed GigE Vision Cameras

GigE Vision cameras are designed for flexible, high-performance image acquisition using standard Ethernet technology. They combine image transmission, camera control, triggering, and standardized camera configuration over an Ethernet connection, making them well suited for machine vision, scientific imaging, medical imaging, robotics, inspection, defense, distributed imaging, and multi-camera applications.

Modern GigE cameras are available across several Ethernet speeds, including 1, 2.5, 5, and 10 GigE Vision. Higher interface speeds provide additional bandwidth for increased resolution, frame rate, pixel depth, or multiple simultaneous camera streams.

Selecting the correct GigE Vision camera therefore involves more than resolution and frame rate. Engineers must also consider Ethernet speed, network architecture, camera count, cable type and distance, PoE requirements, synchronization, packet handling, acquisition bandwidth, host connectivity, and downstream image-processing requirements.

Understanding GigE Cameras

GigE Vision is a standardized machine vision interface built on Ethernet technology. It allows image data and camera-control traffic to be transported over familiar Ethernet infrastructure while providing standardized device discovery, configuration, and image streaming.

A major advantage of GigE Vision is its use of standard networking technology. Depending on the camera and system architecture, GigE Vision cameras can use copper or fiber connections, Ethernet switches, conventional network infrastructure, and standard physical-layer technologies.

Standard copper Ethernet can support cable runs of approximately 100 meters, substantially simplifying installations where cameras must be located far from the acquisition system. Fiber connections can extend camera placement even farther while also providing electrical isolation.

GigE Vision cameras may operate at different Ethernet speeds, including:

• 1 GigE Vision cameras
• 2.5 GigE Vision cameras
• 5 GigE Vision cameras
• 10 GigE Vision cameras

Typical considerations include:

• Camera resolution and frame rate
• GigE Vision interface speed
• Number of cameras
• Monochrome or color operation
• Pixel depth
• Global or rolling shutter
• External triggering and synchronization
• PTP support
• PoE requirements
• Cable type and distance
• Copper or fiber connectivity
• Network topology and switching
• Area-scan or line-scan architecture
• Frame grabber, network, and host-system bandwidth

Current GigE Vision camera portfolios include both area-scan and line-scan models, ranging from compact 1 GigE industrial cameras to high-resolution and high-frame-rate 5 GigE and 10 GigE Vision cameras.

GigE Vision Camera Selection Criteria

The correct GigE Vision camera should be selected according to the complete imaging workload, not Ethernet speed alone.

Resolution and Sensor Format

Higher-resolution sensors capture more spatial detail but also generate larger image payloads. The optical format and lens must match the sensor size and required field of view.

Global vs. Rolling Shutter

Global-shutter cameras expose the complete image simultaneously and are generally preferred for fast-moving objects and precision measurement. Rolling-shutter sensors may offer advantages in resolution, sensitivity, cost, or availability, but motion artifacts must be considered.

Frame Rate

Higher frame rates directly increase the required bandwidth. As resolution, frame rate, or pixel depth increases, a camera may need 2.5, 5, or 10 GigE Vision instead of 1 GigE.

Pixel Depth and Image Format

8-, 10-, 12-, or higher-bit formats affect image quality, dynamic range, and data rate. Color transmission can also increase the required bandwidth.

Ethernet Speed

1 GigE Vision may be sufficient for moderate image streams. 2.5 and 5 GigE Vision provide intermediate bandwidth levels, while 10 GigE Vision supports substantially higher data rates.

Network Architecture

GigE Vision cameras can connect directly to acquisition hardware or through Ethernet switches. Multi-camera systems must provide sufficient switch, uplink, buffering, and acquisition bandwidth.

Triggering and Synchronization

Multi-camera, metrology, 3D, robotics, and line-scan applications may require precise synchronization. GigE Vision systems can use hardware triggering and network-based clock synchronization.

Acquisition and Processing Architecture

The Ethernet interface, switch, FPGA, PCIe path, host memory, storage, GPU, and processing pipeline must all support the sustained image-data rate.

High-Resolution and High-Speed Imaging

High-resolution and high-speed GigE Vision cameras can generate image streams that exceed the practical bandwidth of conventional 1 GigE acquisition.

The underlying relationship is straightforward:

Resolution × frame rate × pixel depth × number of cameras = required image-data bandwidth

Higher resolution increases the data in each frame, while higher frame rates and pixel depths further increase the required bandwidth. Multi-camera systems multiply those requirements again.

Modern GigE cameras therefore range from compact 1 GigE systems to 2.5, 5, and 10 GigE Vision cameras for higher-resolution and higher-frame-rate imaging.

The acquisition interface, network infrastructure, PCIe path, and downstream processing system must sustain the resulting data flow without packet loss or host-side bottlenecks.

1, 2.5, 5 and 10 GigE Vision Cameras

GigE Vision benefits from the scalability of Ethernet, allowing the interface speed to be matched to the required image-data bandwidth.

The usable image-data throughput is lower than the nominal Ethernet rate because protocol overhead must also be transmitted.

1 GigE Vision Cameras
1 GigE Vision remains well suited to applications where moderate bandwidth, standard Ethernet infrastructure, long cable reach, and cost efficiency are more important than maximum throughput.

2.5 GigE Vision Cameras
2.5 GigE Vision provides additional bandwidth when 1 GigE is no longer sufficient without requiring a 5 or 10 GigE architecture.

5 GigE Vision Cameras
5 GigE Vision supports higher resolutions and frame rates while retaining the flexibility of Ethernet-based acquisition.

10 GigE Vision Cameras
10 GigE Vision is suited to high-resolution, high-frame-rate, and data-intensive imaging. Depending on the camera and acquisition hardware, connections may use copper or fiber.

Gidel’s current GigE Vision frame-grabber family supports optional inline FPGA processing directly in the acquisition path across multiple camera-count configurations.

Connectivity and Network Architecture

One of the major advantages of GigE Vision is its use of established Ethernet infrastructure. Depending on the camera and installation, systems can use standard Ethernet cabling, copper or fiber connections, Ethernet switches, PoE, and distributed multi-camera network topologies.

Long Cable Reach

Copper Ethernet links can reach approximately 100 m, while fiber can extend camera placement significantly farther and provide electrical isolation or improved EMI immunity.

Physical Connectors

GigE Vision cameras commonly use RJ45 Ethernet connectors for copper connections, while industrial implementations may use ruggedized M12 connectors. Higher-speed systems can also use fiber interfaces such as SFP+ for 10 GigE Vision, depending on the camera and acquisition architecture.

Flexible Multi-Camera Networking

Ethernet switches allow multiple GigE Vision cameras to share network infrastructure rather than requiring every camera to connect directly to the acquisition system. Switch capacity and uplink bandwidth must be sized for the combined camera traffic.

Power over Ethernet

Compatible cameras can combine power and data on a single Ethernet cable using PoE, reducing installation and cabling complexity.

PTP-Based Synchronization

Compatible GigE Vision cameras and acquisition devices can use Precision Time Protocol to synchronize clocks across the network. Hardware triggering can also be used where precise acquisition timing is required.

Scalability Beyond 10 GigE

The Ethernet foundation also gives GigE Vision a clear technology path toward much higher bandwidths. GigE Vision 3.0 was approved in April 2026 and introduces RoCEv2-based streaming for significantly higher Ethernet throughput and reduced host involvement.

These characteristics make GigE Vision particularly attractive where long cable reach, flexible camera placement, network scalability, and distributed acquisition are important system requirements.

GigE Vision Network Considerations

Ethernet provides substantial flexibility, but high-performance GigE Vision systems must be designed around the complete network and acquisition path.

Protocol Overhead and Packet Handling

The nominal Ethernet link rate is higher than the usable image-data throughput because network and GigE Vision protocols consume part of the available bandwidth. The acquisition interface, buffers, drivers, and software must also sustain the incoming packet rate without loss.

Shared Network Bandwidth

When multiple cameras share a switch or uplink, their combined image-data rate must remain within the available network bandwidth.

Buffering and Network Configuration

High-bandwidth systems may require suitable buffering, packet sizing, switch configuration, NIC settings, and host tuning to avoid packet loss or incomplete frames.

Timing and Synchronization

Ethernet image transport should not be assumed to be inherently deterministic. Applications requiring precise acquisition timing should use hardware triggering, timestamping, PTP synchronization, or dedicated acquisition hardware as appropriate.

Example Applications

Industrial Inspection

GigE Vision cameras are widely used in inspection systems where standard networking, flexible camera placement, and scalable acquisition are important.

High-Resolution Imaging

5 GigE and 10 GigE Vision cameras provide additional bandwidth for higher-resolution sensors and increased frame rates in semiconductor, electronics, medical, and scientific imaging.

Line-Scan Imaging

High-speed GigE Vision line-scan cameras are well suited to web inspection, sorting, printing, surface inspection, and other continuous imaging applications.

Multi-Camera Vision

Ethernet switching allows multiple cameras to share network infrastructure while appropriate synchronization mechanisms coordinate acquisition.

Long-Distance and Distributed Imaging

Copper links of approximately 100 m and longer fiber connections make GigE Vision particularly useful when cameras are physically separated from the acquisition system.

Robotics and Embedded Vision

GigE Vision cameras integrate naturally into robotic and embedded systems that already use Ethernet networking.

Edge AI and Real-Time Analytics

FPGA preprocessing, ROI selection, Compression, Detection, and other data-reduction functions can reduce the amount of high-resolution image data sent to an embedded GPU for AI inference.

Modern GigE Vision Camera Vendors & Configurations

The current market illustrates the broad use of GigE Vision across industrial, high-resolution, line-scan, multi-camera, and high-speed imaging.

Basler covers a broad range of GigE Vision cameras for industrial imaging, with models spanning multiple resolutions, sensor formats, and performance levels.

Teledyne Vision Solutions supports a wide range of GigE camera configurations, from conventional GigE to higher-speed Ethernet interfaces for industrial, scientific, and other data-intensive imaging applications.

LUCID Vision Labs focuses on GigE Vision cameras across several Ethernet bandwidth levels, including high-speed configurations for demanding machine vision and imaging systems.

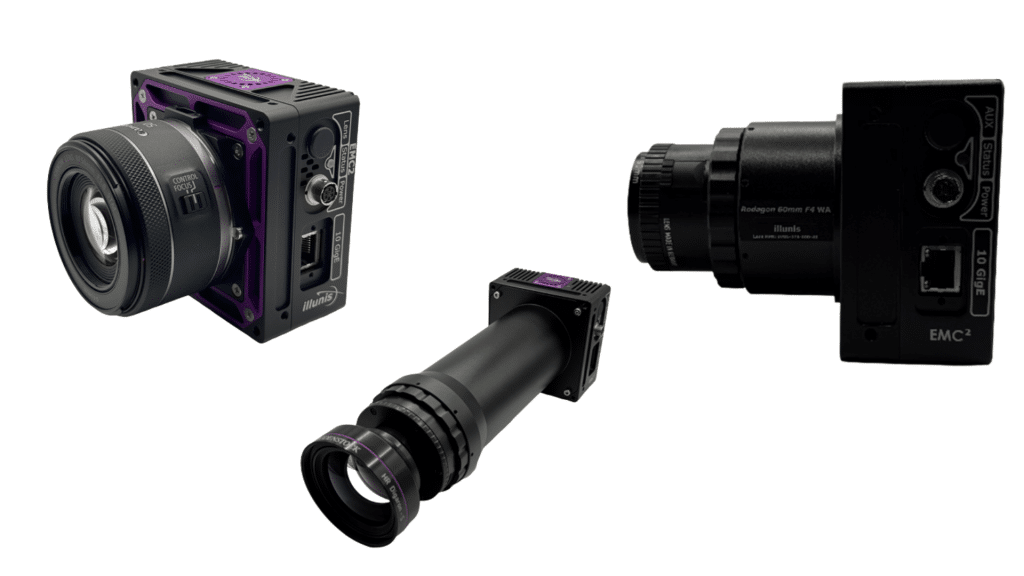

illunis develops high-resolution 10 GigE Vision cameras for demanding imaging applications, with large-format global-shutter sensors. Its EMC2 camera family is aimed at aerial imaging, embedded systems, industrial inspection, scientific imaging, and other applications that require high-resolution Ethernet-based acquisition.

The important system-design question is therefore not simply whether a camera uses GigE Vision, but what Ethernet speed it requires, how many cameras share the acquisition architecture, and how much sustained image data the complete network and processing pipeline must handle.

GigE Vision Acquisition Platforms and FPGA Processing

Once the camera requirements are defined, the next step is selecting an acquisition and processing architecture that can support the required Ethernet speed, camera count, aggregate bandwidth, synchronization, network topology, and real-time image-processing needs.

Gidel provides PCIe GigE Vision frame grabbers and compact Edge AI systems for GigE camera acquisition, with support for 1, 2.5, 5, and 10 GigE Vision cameras, optional inline FPGA processing, and scalable multi-camera synchronization.

PCIe Frame Grabbers for GigE Vision Cameras

High-speed GigE Vision cameras require acquisition hardware that matches the camera’s Ethernet speed, camera count, synchronization requirements, and sustained image-data rate.

A GigE Vision frame grabber receives image data from the cameras, handles acquisition and buffering, provides synchronization and optional FPGA processing, and transfers image data into the host computer through PCIe.

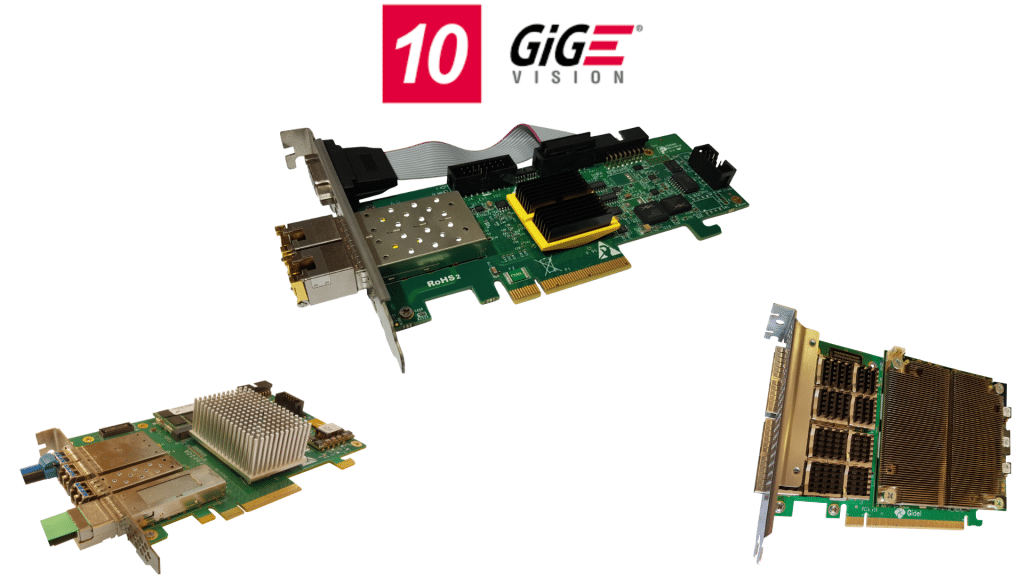

Gidel’s PCIe GigE Vision portfolio includes:

• HawkEye-20GigE: up to 2 × 10 GigE cameras, 4 × 5 GigE cameras, 8 × 2.5 GigE cameras, or 20 × 1 GigE cameras
• Proc10A-40GigE: up to 4 × 10 GigE cameras, 8 × 5 GigE cameras, 16 × 2.5 GigE cameras, or 30 × 1 GigE cameras
• Proc1C10M-120GigE: Up to 12 × 10 GigE cameras, 4 × 100 GigE cameras
• Proc1C10N-120GigE: Up to 12 × 10 GigE cameras, 4 × 100 GigE cameras and AI Tensor Blocks

These boards support GigE Vision acquisition across multiple Ethernet speeds, with copper and fiber connectivity options depending on the product configuration.

Gidel’s GigE Vision frame-grabber family supports optional inline FPGA processing directly in the acquisition path across these Ethernet camera configurations.

Edge AI Systems with GigE Vision Frame Grabbers

Applications that benefit from a compact embedded architecture can use an integrated Edge AI system instead of a conventional host computer with a PCIe frame grabber.

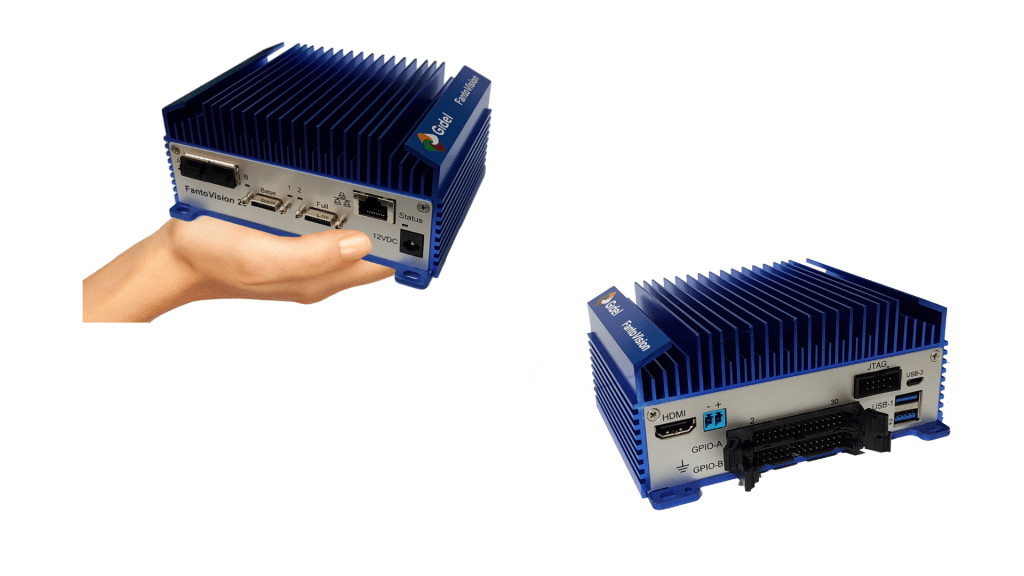

Gidel’s FantoVision20-GigE combines an NVIDIA Jetson processor, Altera FPGA, and integrated Dual 10 GigE Vision acquisition in a compact system. It supports image acquisition from 2 × 10 GigE Vision streams. The system combines FPGA-based camera acquisition and preprocessing with NVIDIA Jetson CPU/GPU computing for AI inference, application processing, recording, and streaming.

This creates two distinct architecture options:

Gidel PCIe GigE Vision frame grabber:
Installed in a host computer and provides GigE Vision camera acquisition, optional FPGA processing, and high-speed data transfer through PCIe to the host system for further processing, storage, and application execution.

Gidel Mini Edge AI system with GigE Vision frame grabber:
A complete compact embedded vision system that integrates GigE Vision camera acquisition, FPGA processing, and NVIDIA Jetson CPU/GPU computing in one platform. It is designed for applications that benefit from an integrated Edge AI architecture rather than a separate host computer with a PCIe acquisition card.

For applications requiring both Camera Link and GigE Vision cameras, the FantoVision20 combines Camera Link and Dual 10 GigE Vision acquisition support.

Real-Time FPGA Image Processing for GigE Vision Acquisition

High-speed GigE cameras can produce more data than the host application needs in its raw form.

Gidel FPGA-based acquisition platforms can optionally process image data as it is acquired, before host-side processing. Available functions include Compression, Detection, ROI/data reduction, custom FPGA processing, and other real-time image-processing operations. Gidel’s current GigE Vision frame grabbers list optional FPGA compression and image-processing capabilities directly in the acquisition path.

Processing data directly in the acquisition path can help:

• Reduce host bandwidth and storage requirements
• Lower host CPU/GPU load
• Preserve low-latency operation
• Execute deterministic processing
• Reduce data volume before recording, streaming, or AI inference

This becomes increasingly relevant as GigE Vision systems scale toward 5 and 10 GigE cameras, multiple simultaneous image streams, and high-resolution configurations.

ISP and Image Enhancement

High-resolution GigE Vision cameras may require dedicated ISP and image-enhancement functions before display, recording, analysis, or AI inference.

When these functions are not already implemented inside the camera, they can be executed in the FPGA acquisition path before the image data reaches the host CPU or GPU.

Depending on the sensor and application, functions may include debayering, white balance, gain and offset correction, HDR correction, bad-pixel correction, non-uniformity correction, dynamic luminance balancing, and color or luminance optimization.

Gidel acquisition platforms can integrate selected ISP and image-processing functions directly into the FPGA acquisition path using existing Gidel capabilities, customer-developed IP, or application-specific algorithms.

Inline ISP processing can reduce host CPU/GPU load, preserve low latency, and prepare image data earlier for recording, streaming, visualization, analysis, or AI processing.

Building Your Own ISP with Gidel Platforms

Gidel platforms provide several ways to build and customize an FPGA-based ISP pipeline. Customers can use Gidel’s off-the-shelf image-processing algorithms, integrate their own FPGA algorithms, develop new processing functions using Gidel’s ProcVision Suite, or work with Gidel to develop application-specific algorithms.

These approaches can also be combined within the same processing pipeline, allowing existing Gidel functions, customer-developed IP, and newly developed algorithms to operate together directly in the FPGA acquisition path.

Using ProcVision Suite, experienced FPGA developers can implement and integrate application-specific processing stages such as debayering, gain and offset correction, HDR, image enhancement, ROI handling, Detection, Compression, and other custom processing functions.

This flexibility allows the processing pipeline to be tailored to the camera, sensor, and application requirements while executing deterministically in the FPGA before data reaches the host CPU, GPU, or Jetson processor.

Multi-Camera Synchronization and Scalable Acquisition

Multi-camera GigE Vision systems require more than sufficient aggregate network bandwidth. Frames must also be acquired with controlled timing and synchronization.

GigE Vision can support network-based synchronization mechanisms such as IEEE 1588 PTP when implemented by the cameras and network infrastructure, in addition to conventional hardware triggering.

Gidel’s InfiniVision architecture is designed for scalable synchronized acquisition across multiple cameras and acquisition systems. Configurations can scale to 100+ synchronized cameras across GigE Vision and Gidel’s other supported imaging interfaces.

This architecture is relevant to applications such as:

• Synchronized multi-view imaging
• Volumetric imaging
• 3D vision
• High-speed sensor arrays
• Large inspection systems
• Defense and scientific imaging
• Distributed acquisition systems

So, Which GigE Vision Camera Is Right for You?

There is no single “best” GigE Vision camera for every application. The right choice depends on sensor requirements, Ethernet speed, network architecture, camera count, synchronization, and downstream processing.

Standard Industrial Imaging:
Consider 1 GigE Vision cameras where moderate bandwidth, long cable reach, standard networking, and cost efficiency are more important than maximum throughput.

Higher-Resolution and Higher-Frame-Rate Imaging:
2.5 and 5 GigE Vision cameras provide additional bandwidth when 1 GigE is no longer sufficient, without immediately requiring a 10 GigE architecture.

High-Throughput Imaging:
10 GigE Vision cameras suit high-resolution, high-frame-rate, and data-intensive area-scan or line-scan applications. The network, PCIe path, and host system must sustain the resulting data rate.

Multi-Camera and Distributed Imaging:
Prioritize synchronization support, sufficient switch bandwidth, and adequate uplink capacity. Hardware triggering or PTP can coordinate acquisition timing across multiple cameras.

Long-Distance Camera Installations:
GigE Vision is particularly useful when cameras are located far from the acquisition system. Copper Ethernet can support approximately 100 m, while fiber can extend significantly farther.

Compact and Embedded Deployments:
GigE Vision cameras can be paired with Edge AI platforms that combine FPGA acquisition with NVIDIA Jetson CPU/GPU processing.

High-Throughput and Data-Intensive Pipelines:
Inline FPGA processing for Compression, ISP, HDR, Detection, or data reduction can reduce host bandwidth, storage requirements, and CPU/GPU load.

Need help configuring your GigE Vision acquisition and processing pipeline?

Explore Gidel’s PCIe GigE Vision frame grabbers to review available acquisition options.

Need help selecting the right acquisition, FPGA processing, networking, and synchronization architecture for your GigE Vision camera system? Contact Us.
