Video, Machine Vision and AI Inferences on the Edge

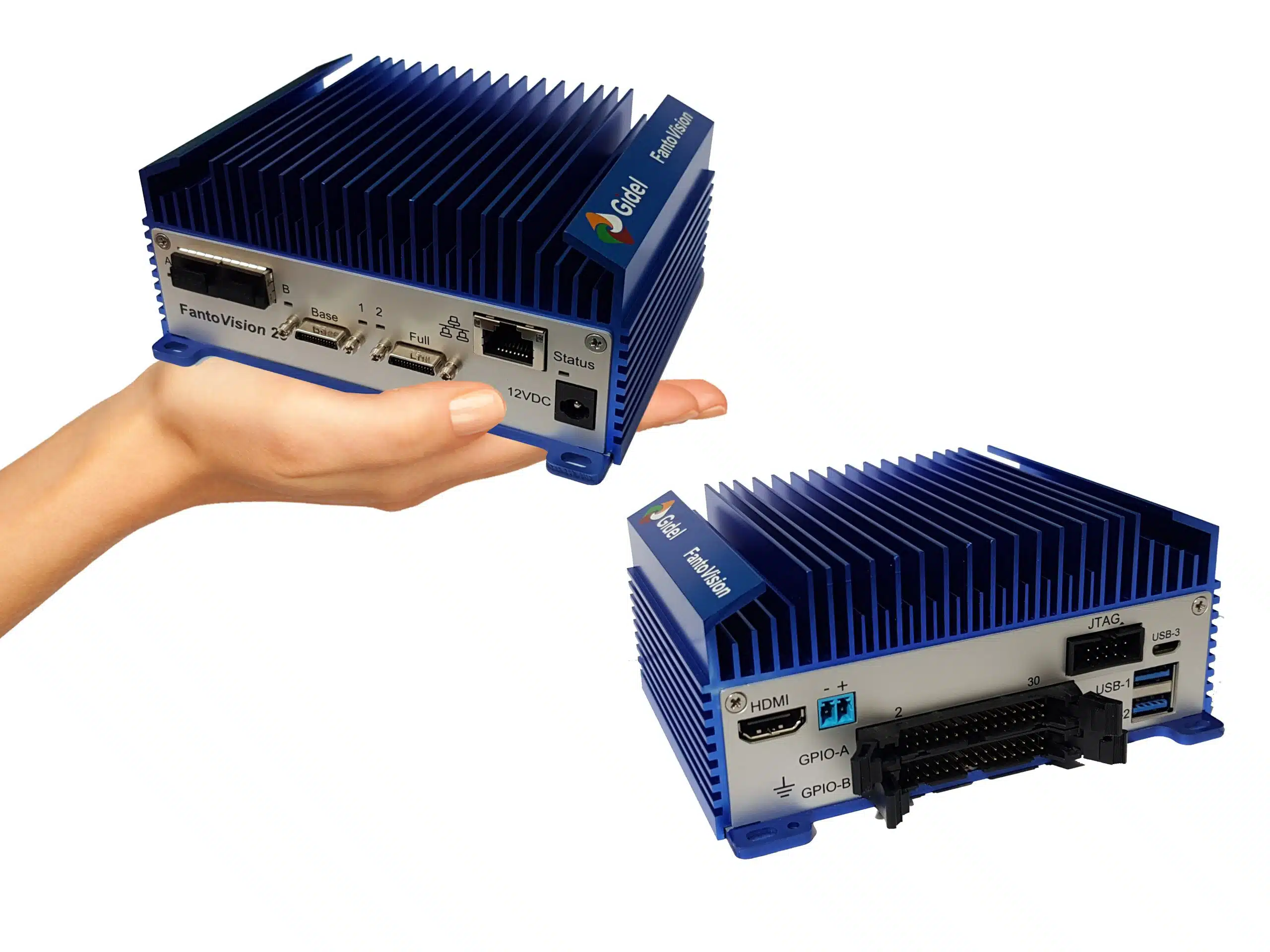

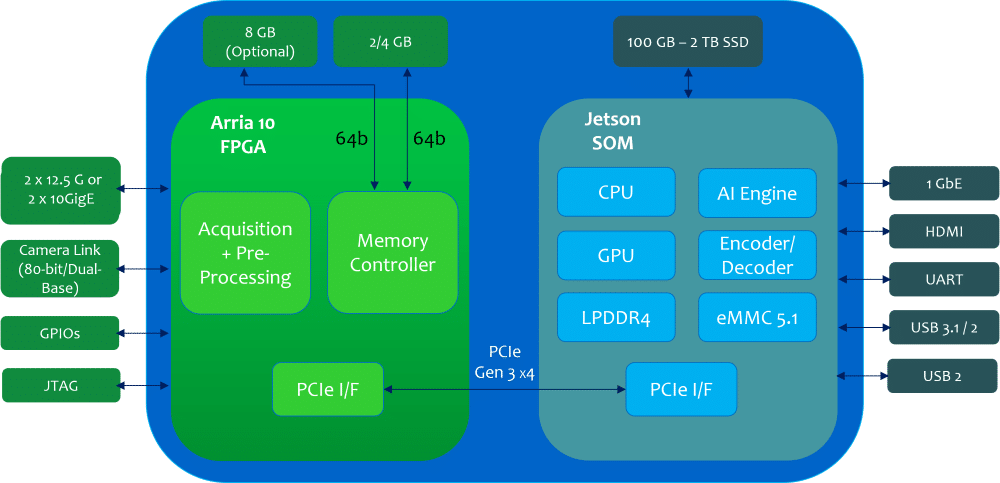

Gidel’s FantoVision 20™ is a pioneering compact computer enabling image acquisition and processing from 2 x 10 GigE Vision and from 80- bit or Dual-Base Camera Link cameras. The FantoVision’s innovative architecture merges high-end image acquisition with real-time image processing and/or compression using Nvidia Jetson™ embedded computer with optional pre-processing/compression on Intel Arria 10™ FPGA. The Jetson boasts up to 21 TOPS AI compute capability using Nvidia’s comprehensive libraries. The GPU and FPGA interconnect via 4-lane PCIe capable of up to 20 Gb/s. With up to Tera Byte+ SSD, the system can perform demanding real-time processing, compression, and recording. The FPGA is fortified with up to 10 GB DDR4 @ 200 Gb/s.

Open Customizable Image Processing
The FantoVision is also distinct in its open architecture enabling embedded AI/image processing on GPU and FPGA. Software engineers can program their algorithms on GPU using CUDA C/C++ and NVIDIA’s AI libraries. In addition, developing and deploying optional preprocessing block on FPGA is simple and fast using Gidel’s novel ProcVision™ Suite.

Scalable Solution

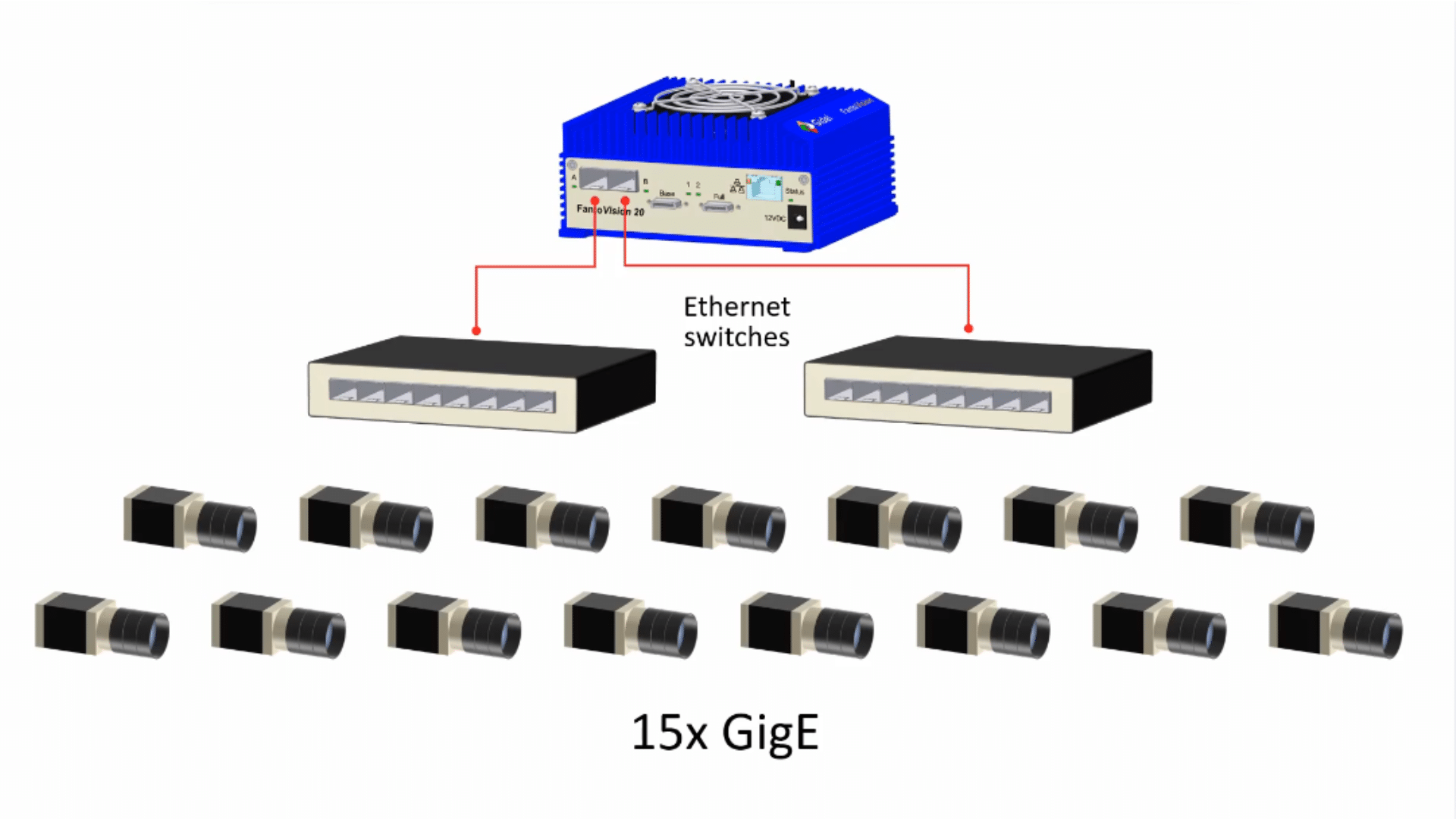

The FantoVision opens the way for new compact, cost-effective, scalable vision and imaging solutions for high-bandwidth, low-latency applications. Multi-FantoVision units can be interconnected to provide unique and scalable topologies. Using Gidel’s InfiniVision™ open frame grabber flow, 100+ sensors can be synchronized and processed simultaneously.
